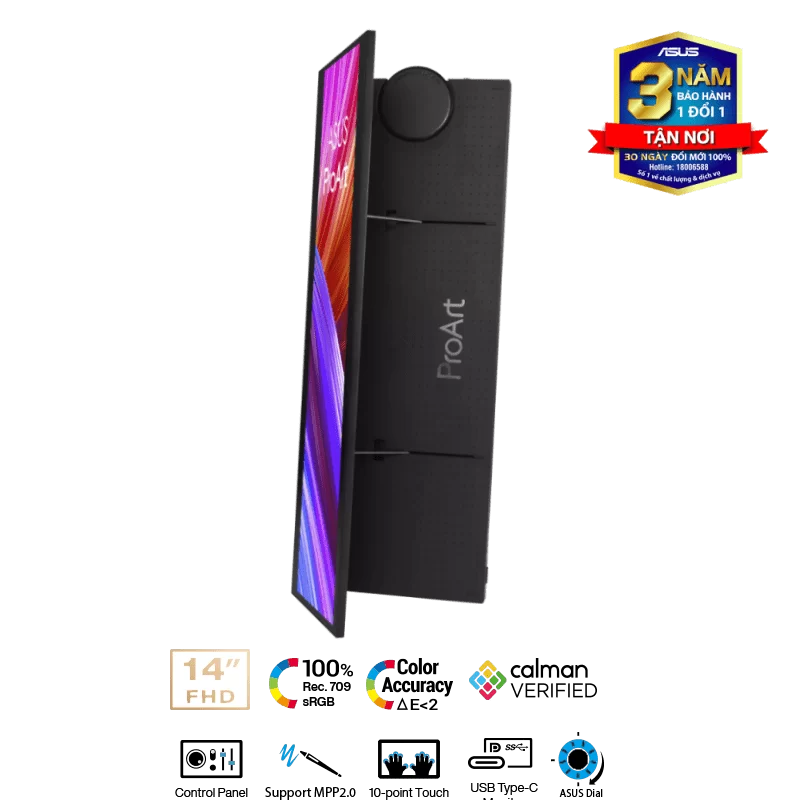

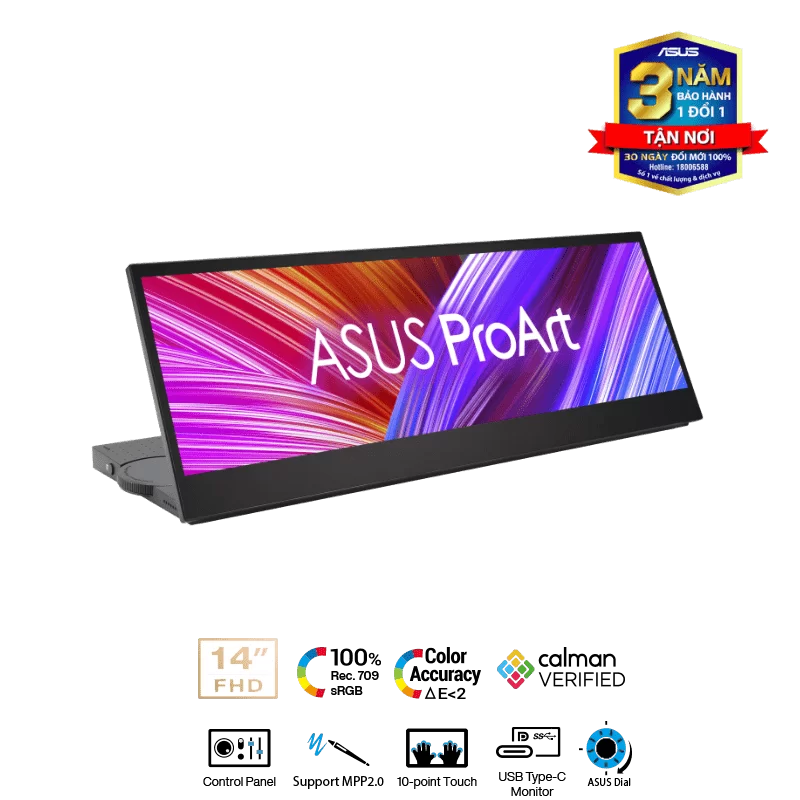

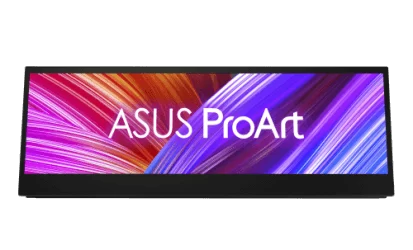

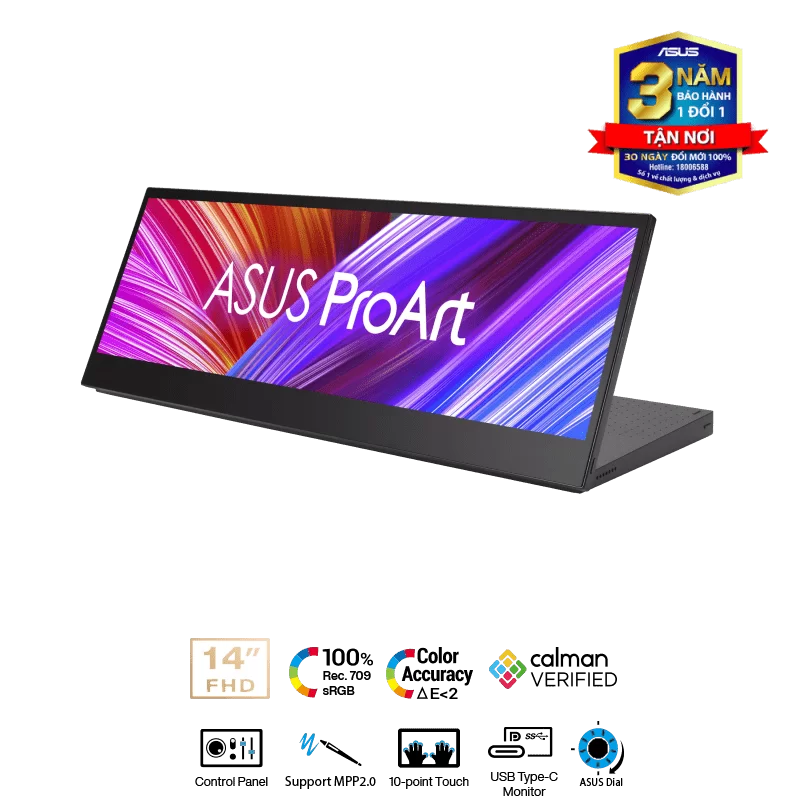

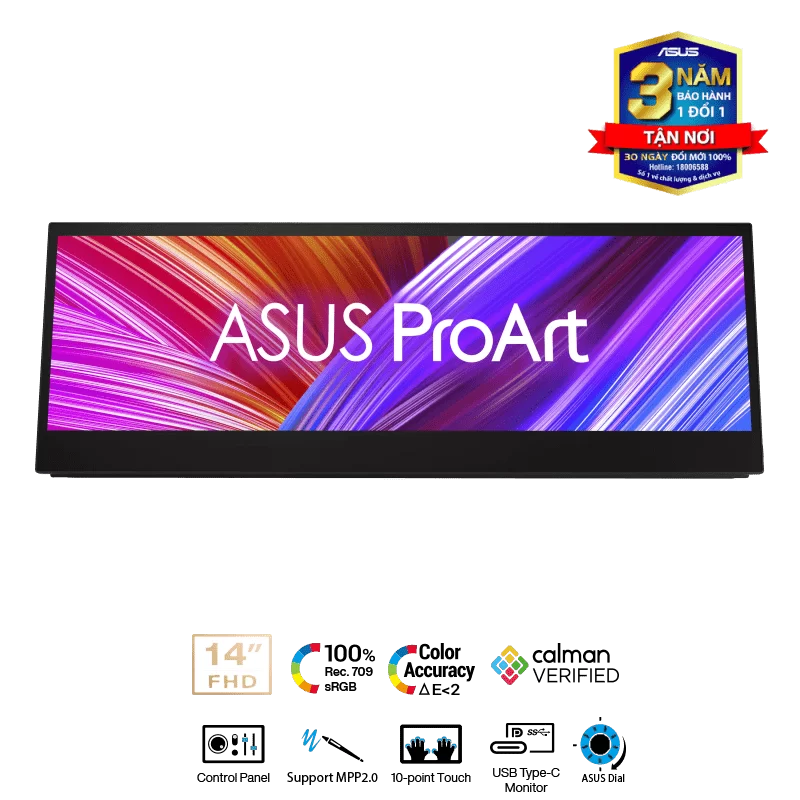

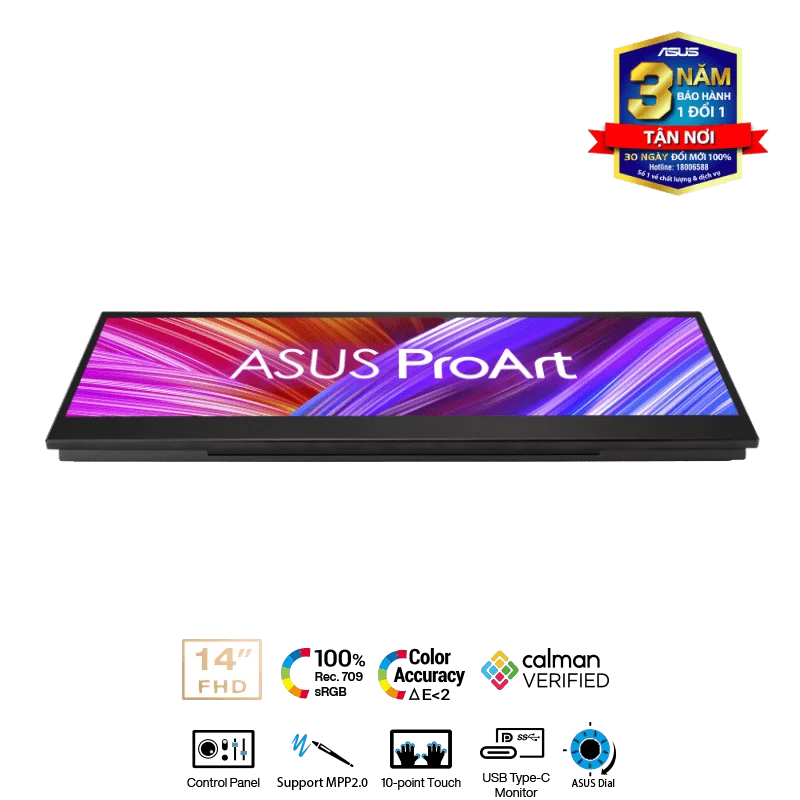

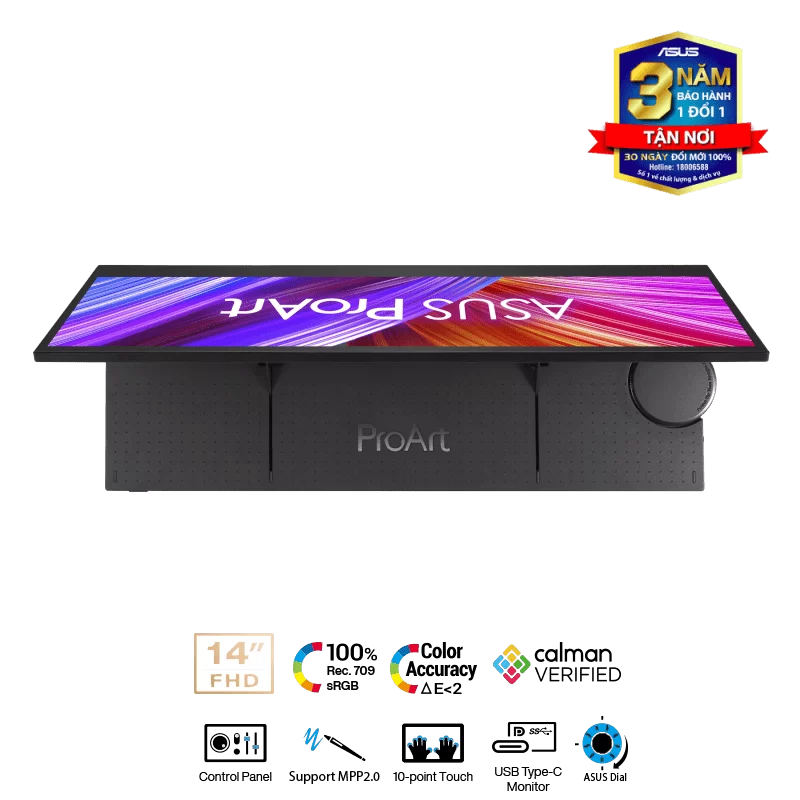

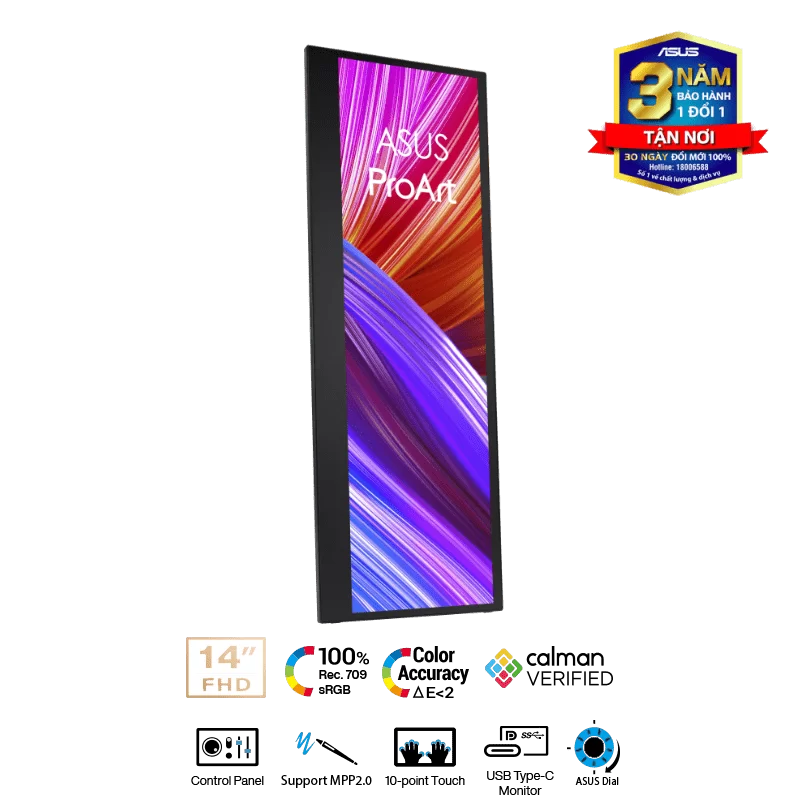

ASUS ProArt Display PA147CDV Creative Tool Portable Touch Monitor – 14 inch, IPS FHD, 60Hz, 100% sRGB, USB-C Touchscreen, Adobe Compatible (Speaker)

Model

ProArt Display PA147CDV

Display

Panel Size (inch) : 14
Pixels Per Inch (PPI) : 143
Aspect Ratio : 32:9
Display Viewing Area (H x V) : 344.22 x 98.60 mm
Display Surface : Non-Glare
Backlight Type : LED
Panel Type : IPS
Viewing Angle (CR≧10, H/V) : 178°/ 178°
Pixel Pitch : 0.179mm
Resolution : 1920x 550
Color Space (sRGB) : 100%
Brightness (Typ.) : 400cd/㎡
Contrast Ratio (Typ.) : 1200:1
Display Colors : 16.7M
Response Time : 5ms(GTG)
Refresh Rate (Max) : 60Hz
Touch : Yes (PCAP Touch)
Protection Glass : Yes
Flicker-free : Yes
LCD ZBD Warranty : Yes(3 yr)

Video Feature

ProArt Preset : Standard
ProArt Preset : sRGB
ProArt Preset : DCI-P3
ProArt Preset : Rec. 709
ProArt Preset : Scenery
ProArt Preset : Reading
ProArt Preset : Darkroom
ProArt Preset : User mode1
ProArt Preset : User mode2
Color Temp. Selection : Yes(5 modes)
Color Adjustment : 6-axis adjustment(R,G,B,C,M,Y)
Gamma adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6 )
Color Accuracy : ?E< 2
ProArt Palette : Yes
QuickFit : Yes
HDCP : Yes, 1.4
ProArt Chroma Tune : Yes
Low Blue Light : Yes

Audio Feature

Speaker : Yes(1Wx2)

I/O Ports

USB-C x 2 (DP Alt Mode)
HDMI(v1.4) x 1

Signal Frequency

Digital Signal Frequency : HDMI: 24 KHz~83 KHz (H) / 23Hz~60Hz (V)
USB-C: 24 KHz~83 KHz (H) / 23Hz~60Hz (V)

Power Consumption

Power Consumption : 5.05 W
Power Saving Mode : <0.5W
Voltage : 100-240V, 50/60Hz

Mechanical Design

Tilt : Yes (+25° ~ 70°)
Pivot : Yes (0° ~ 90° Clockwise)

Dimensions (Esti.)

Phys. Dimension with Stand (W x H x D) : 357.23 x 127.66 x 20.71 mm ​
Phys. Dimension with Stand (W x H x D) : 357.23 x 127.66 x 20.71 mm ?
Box Dimension (W x H x D) : 440 x 290 x 92 mm

Weight (Esti.)

Net Weight with Stand : 0.950 Kg
Gross Weight : 2.3 Kg

Accessories (vary by regions)

Color pre-calibration report
HDMI cable
Power adapter
ProArt Sleeve
Quick start guide
USB Type-C to A adapter
USB-C cable
USB-C to A cable
Warranty Card

Certificate

TÜV Flicker-free
TÜV Low Blue Light
Calman Verified
