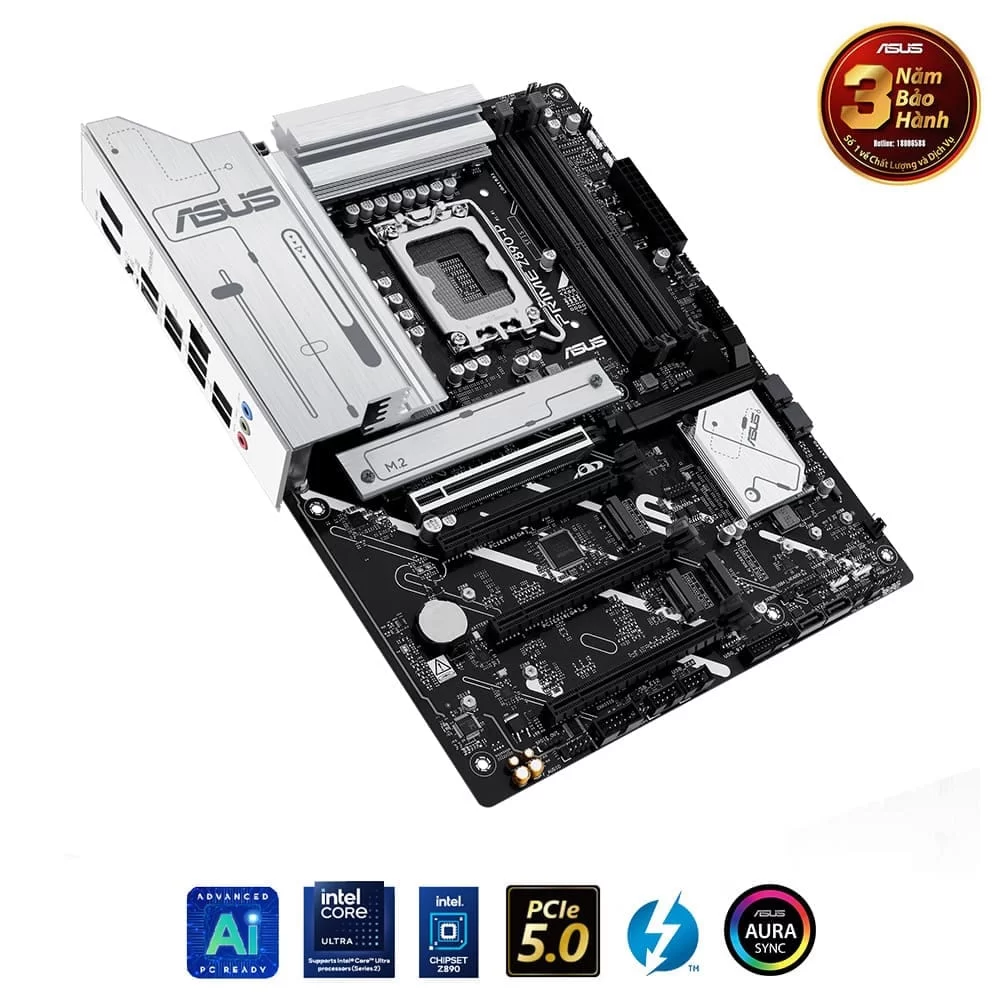

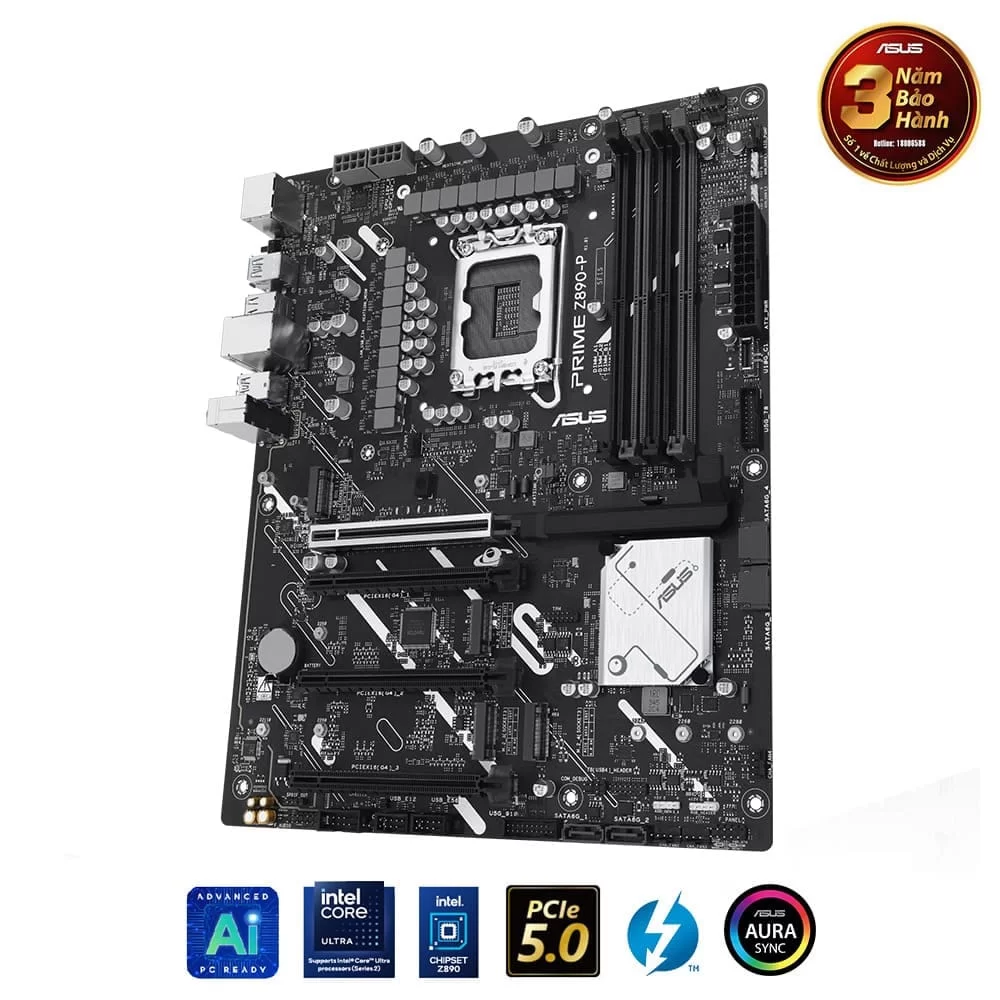

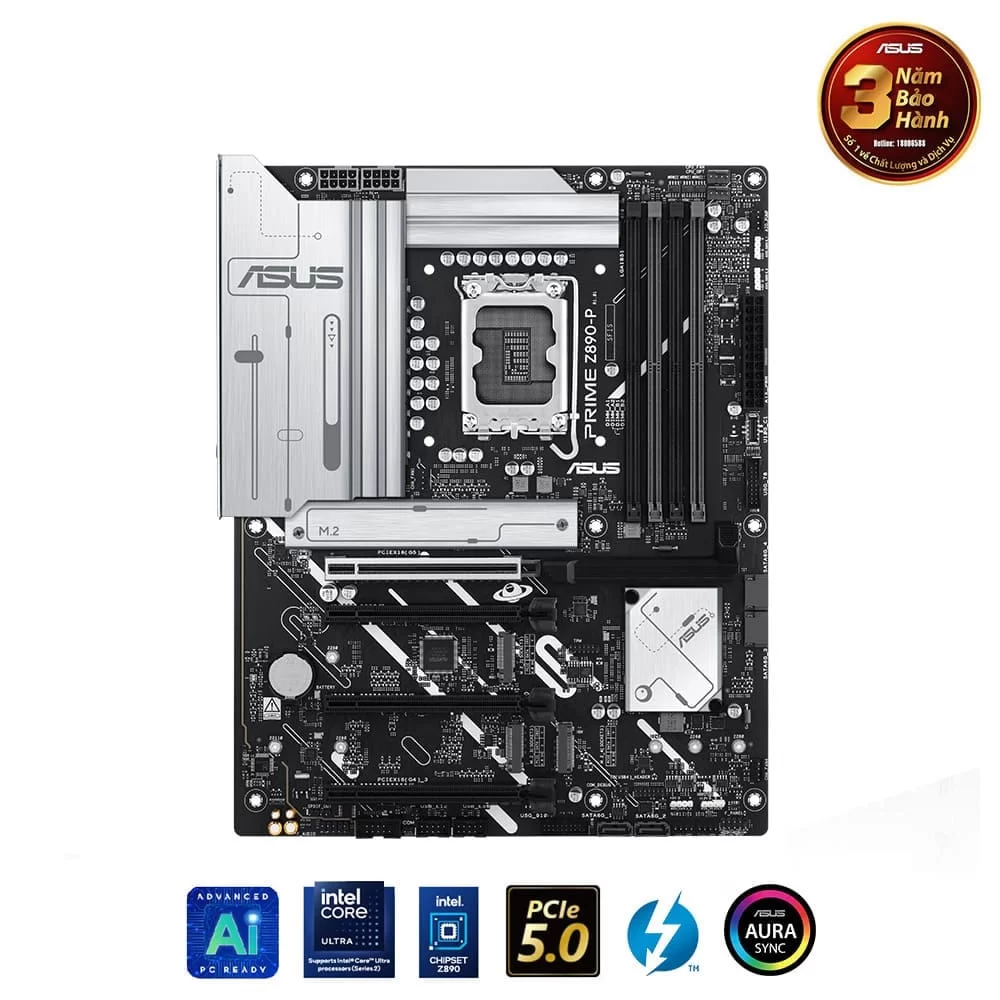

ASUS PRIME Z890-P Mainboard

PRIME Z890-P

CPU

Supports Intel^® Core™ Ultra Processors(Series 2), LGA1851*
Supports Intel^® Turbo Boost Technology 2.0 and Intel^® Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® Z890 Chipset

Memory

4 x DIMM slots, max. 192GB, DDR5
Support up to 8400+MT/s (OC),  Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel^® Extreme Memory Profile (XMP)
ASUS Enhanced Memory Profile III(AEMPIII)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1 x DisplayPort**
1 x HDMI™ port***
1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output****
*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
**Supports max. 4K@60Hz as specified in DisplayPort 1.4.
***Supports 4K@60Hz as specified in HDMI 2.1.
****Supports max. 4K@120Hz as specified in DisplayPort 1.4.
***** VGA resolution support depends on processors’ or graphic cards’ resolution.
****** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

Expansion Slots

Intel^® Core™ Ultra Processors (Series 2)*
1 x PCIe 5.0 x16 slot
Intel^® Z890 Chipset
2 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 4.0 x16 slot (supports x1 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

Storage

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel^® Core™ Ultra Processors (Series 2)*
M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel^® Z890 Chipset
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel^® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.

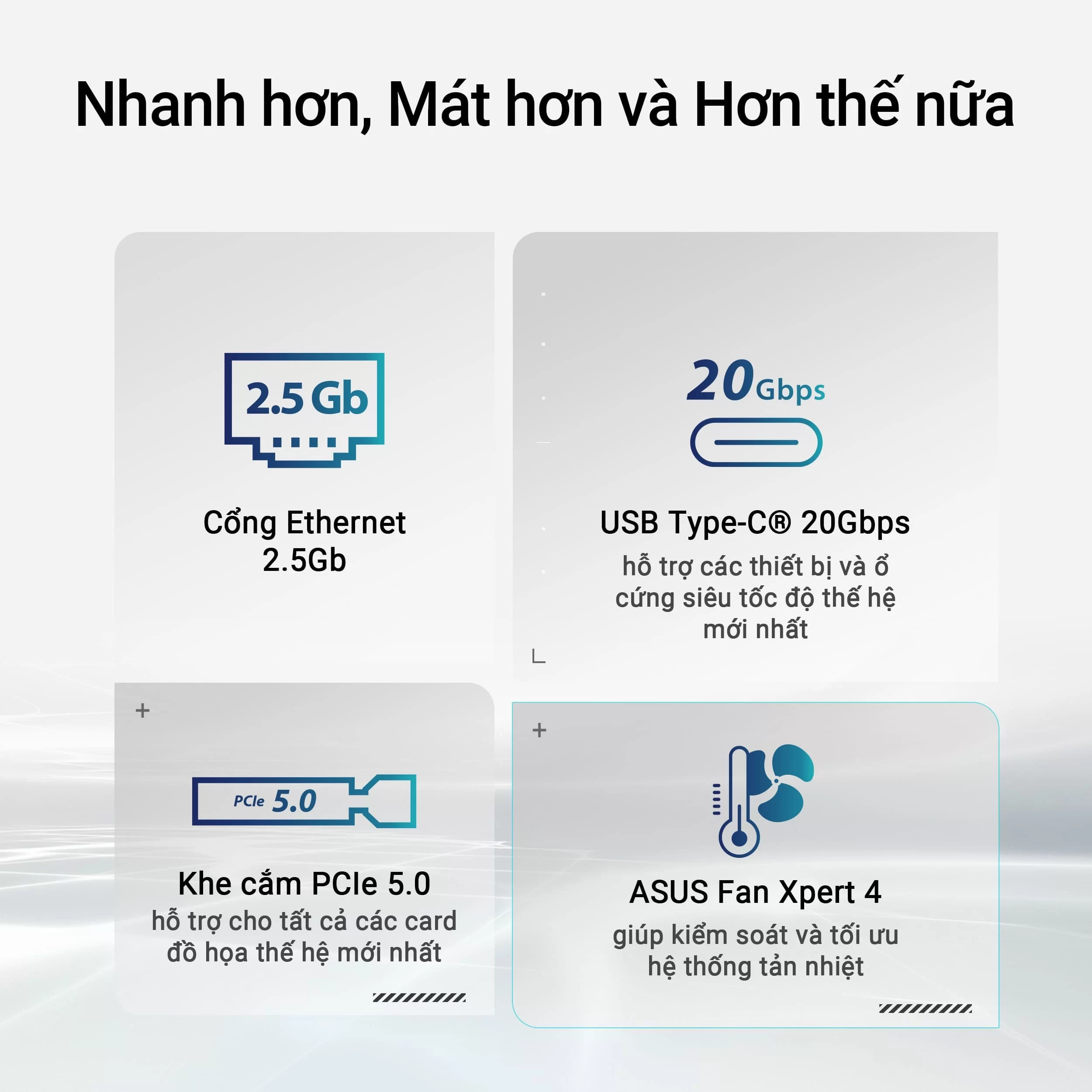

Ethernet

1 x Realtek 2.5Gb Ethernet
ASUS LANGuard

USB

Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C^® with DP Alt mode)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)**
Front USB (Total 9 ports)
1 x USB 10Gbps connector (supports USB Type-C^®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports**
* USB Type-C^® power delivery output: max. 5V/3A
** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
** USB_E5 port, USB_E6 port and USB_E7 port share the bandwidth.

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection,
Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

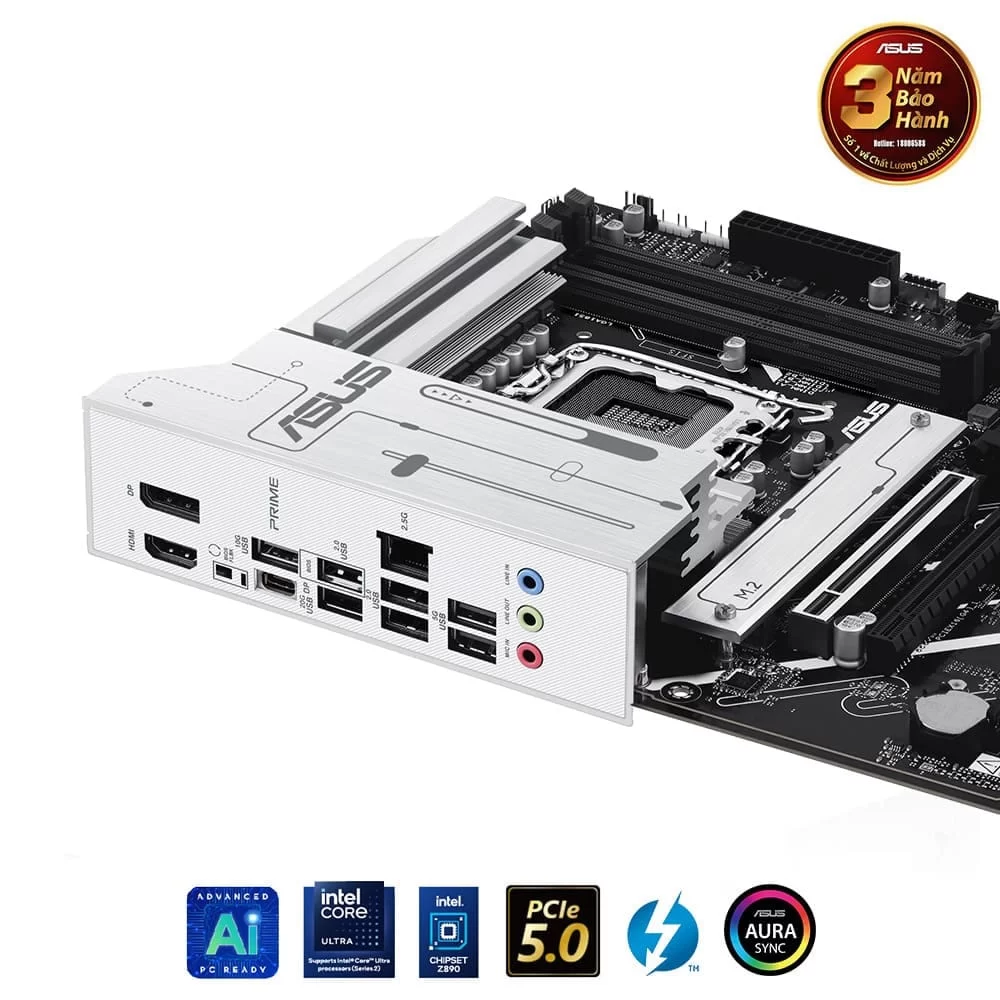

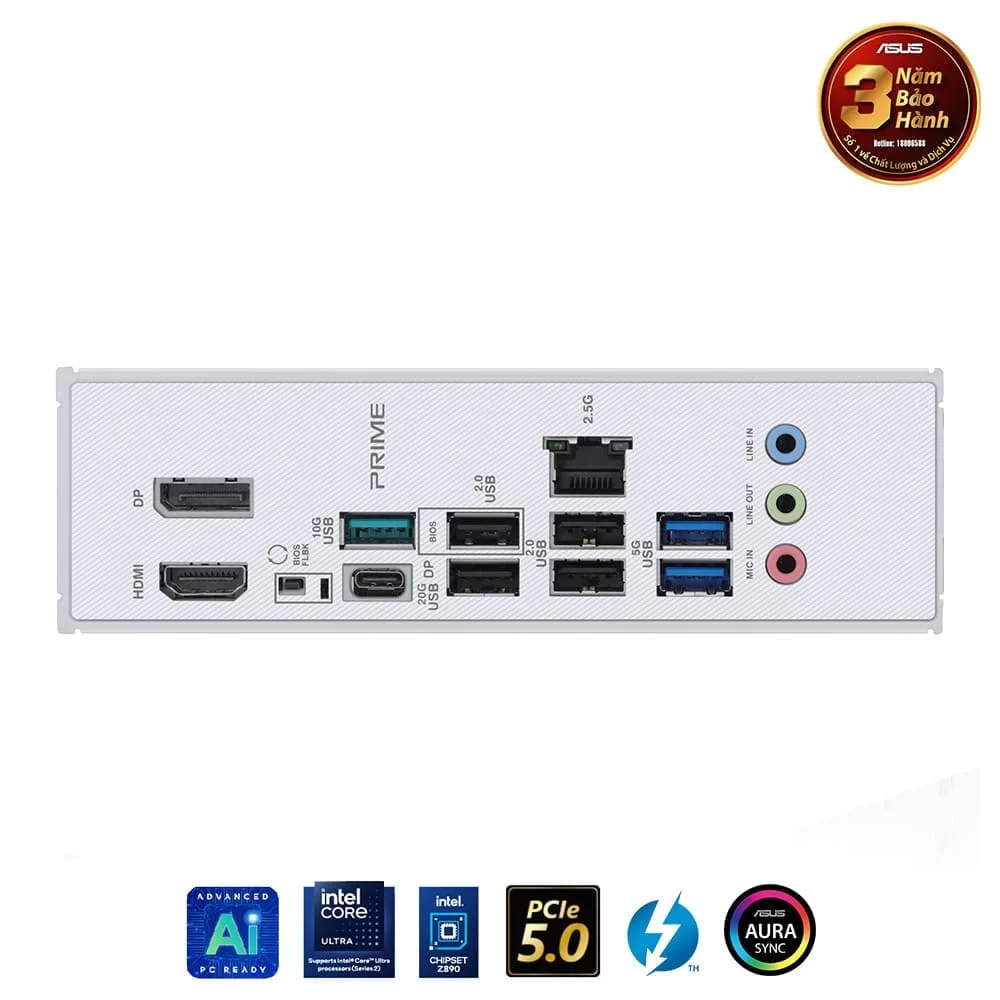

Back Panel I/O Ports

1 x USB 20Gbps port (1 x USB Type-C^® with DP Alt mode)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI^TM port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button

Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C^®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt™ (USB4^®) header

Special Features

ASUS 5X PROTECTION III

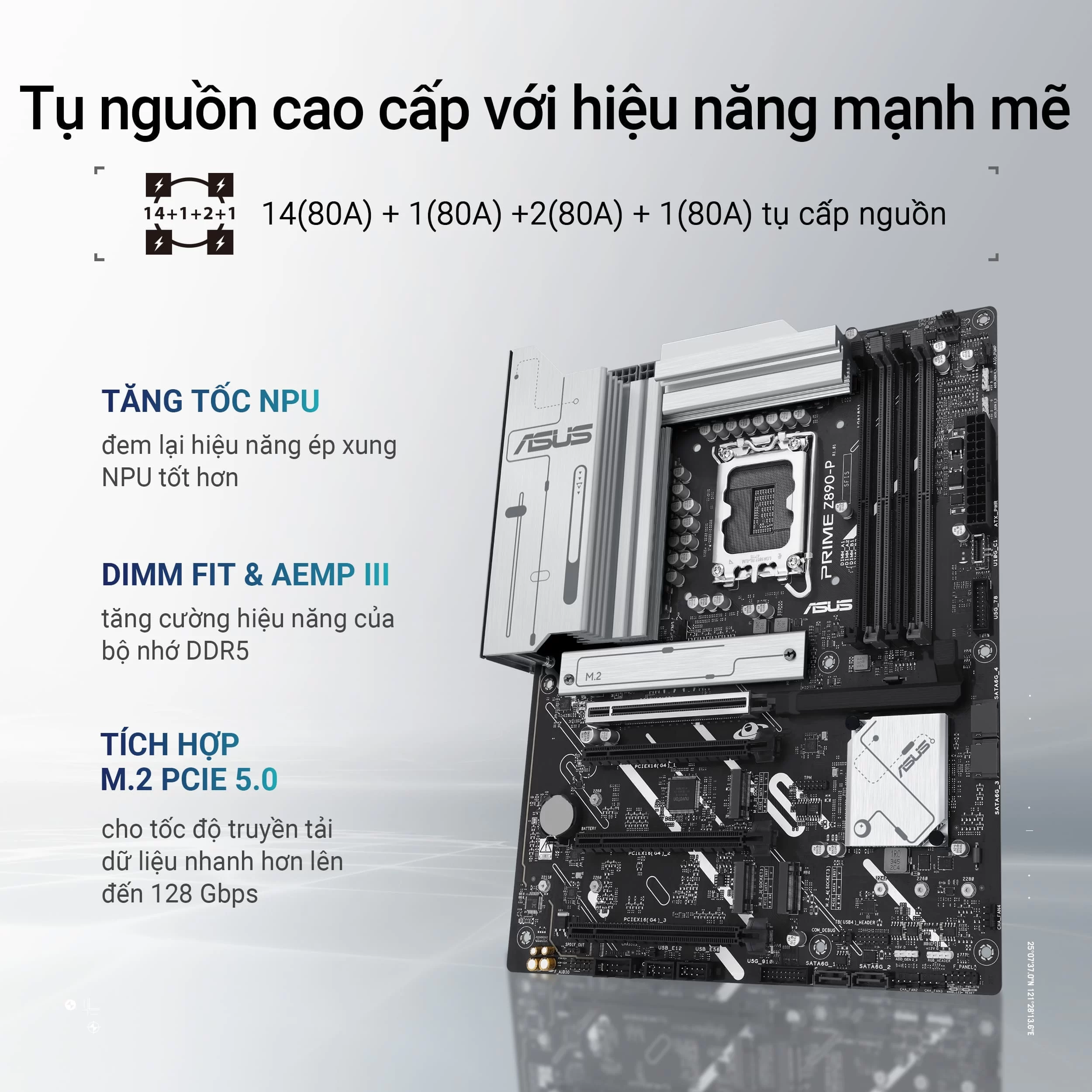

– DIGI+ VRM (- Digital power design with DrMOS)
– LANGuard
– Overvoltage Protection
– SafeSlot
– Stainless-Steel Back I/O

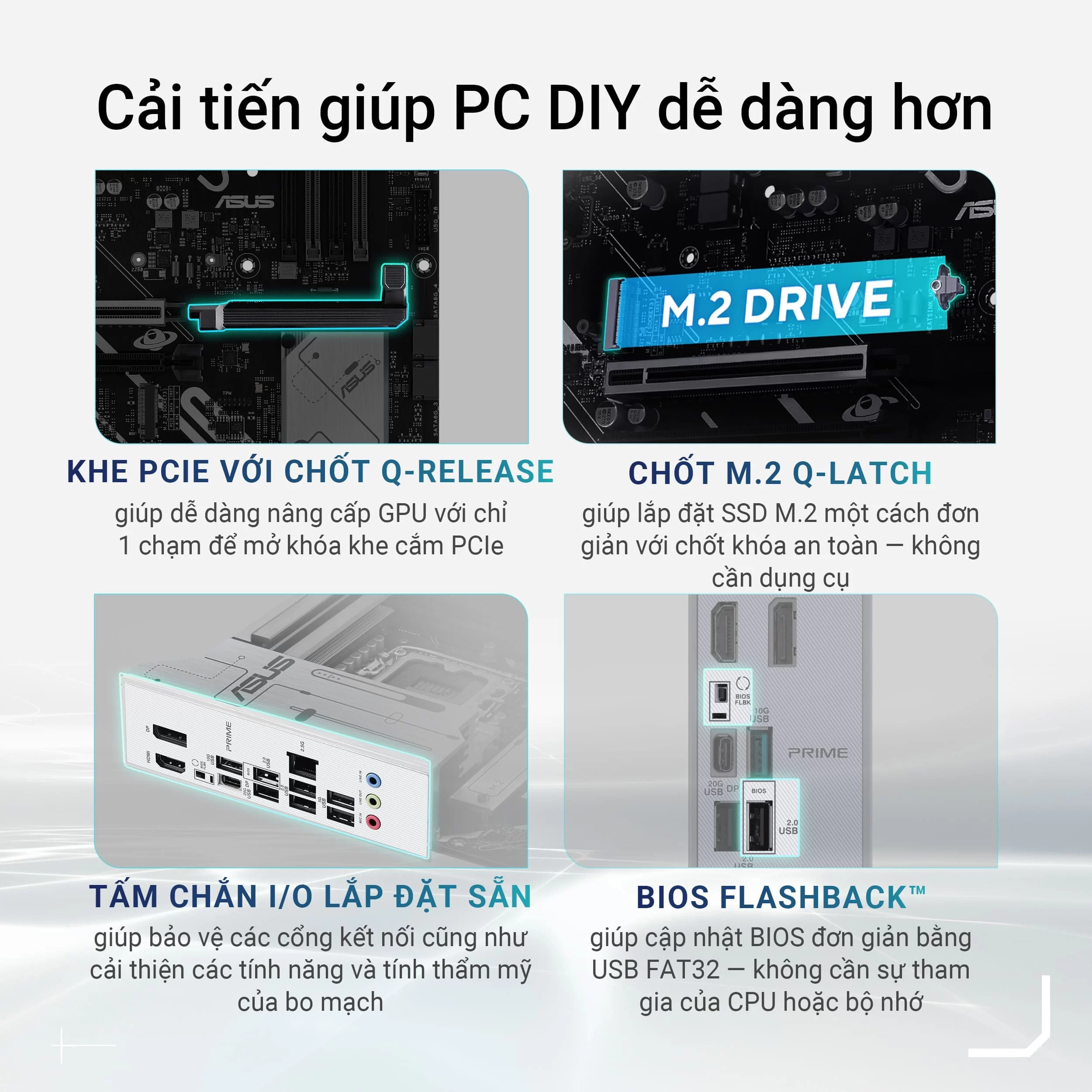

ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-Antenna
– Q-Dashboard
– Q-DIMM
– Q-LED Core
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– ProCool
– Pre-mounted I/O shield
Aura Sync
– Aura RGB header
– Addressable Gen2 headers

Software Features

ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync

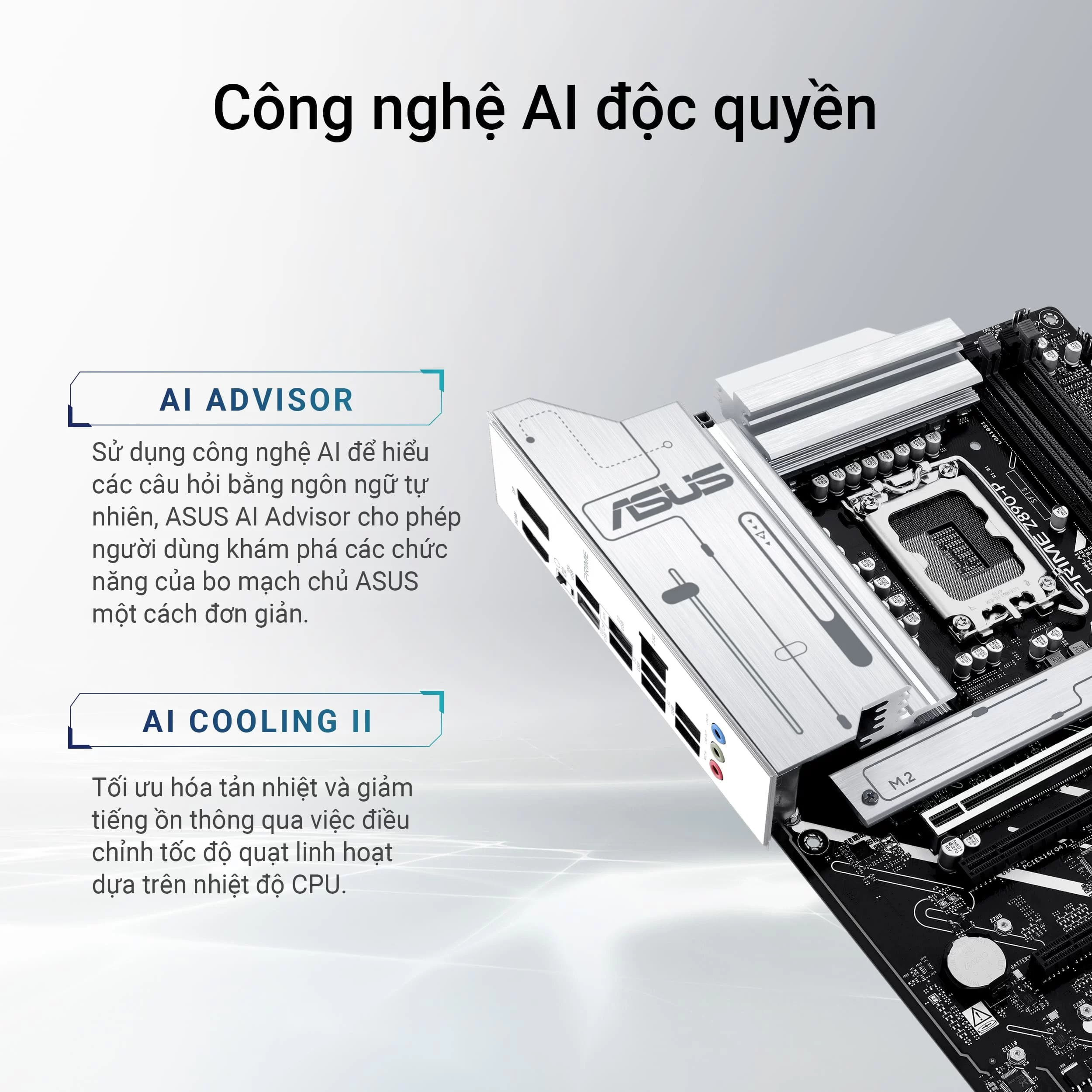

– Fan Xpert 4 (with AI Cooling II)
– Power Saving
ASUS DriverHub
ASUS CPU-Z
TurboV Core
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey

BIOS

256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

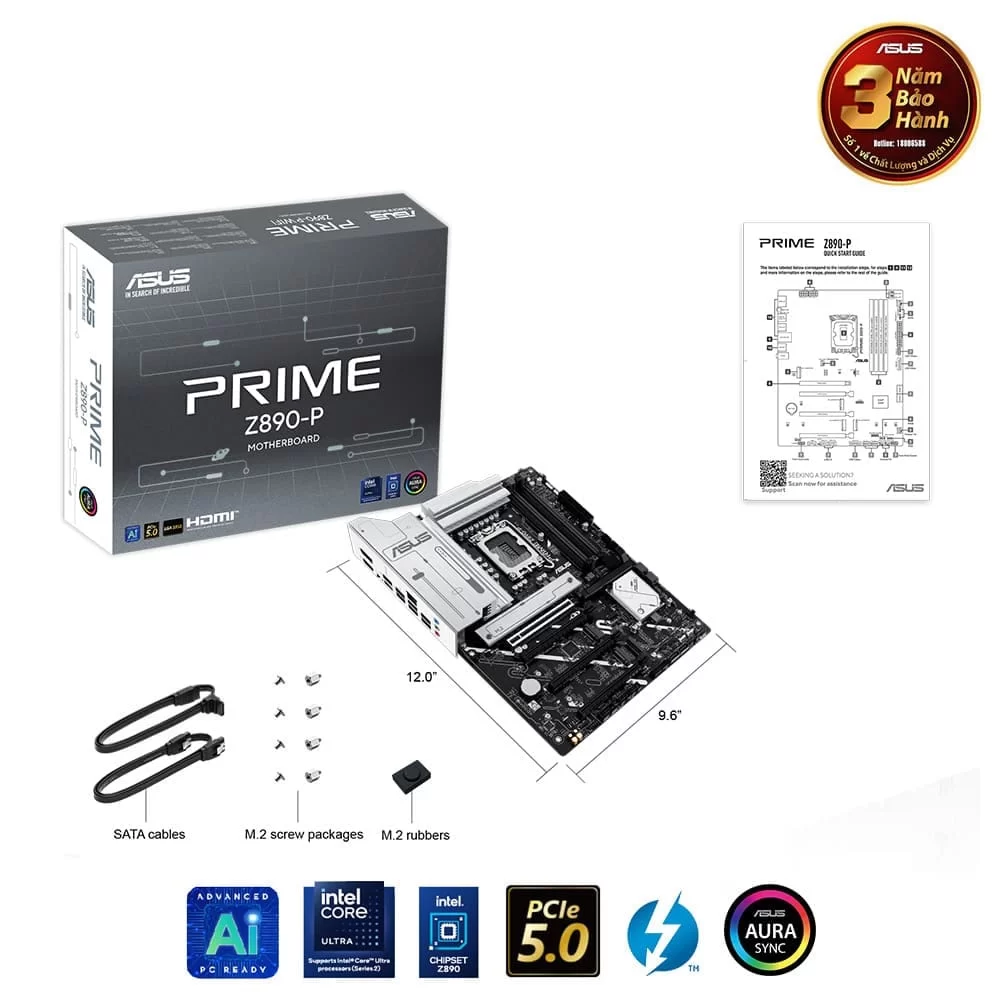

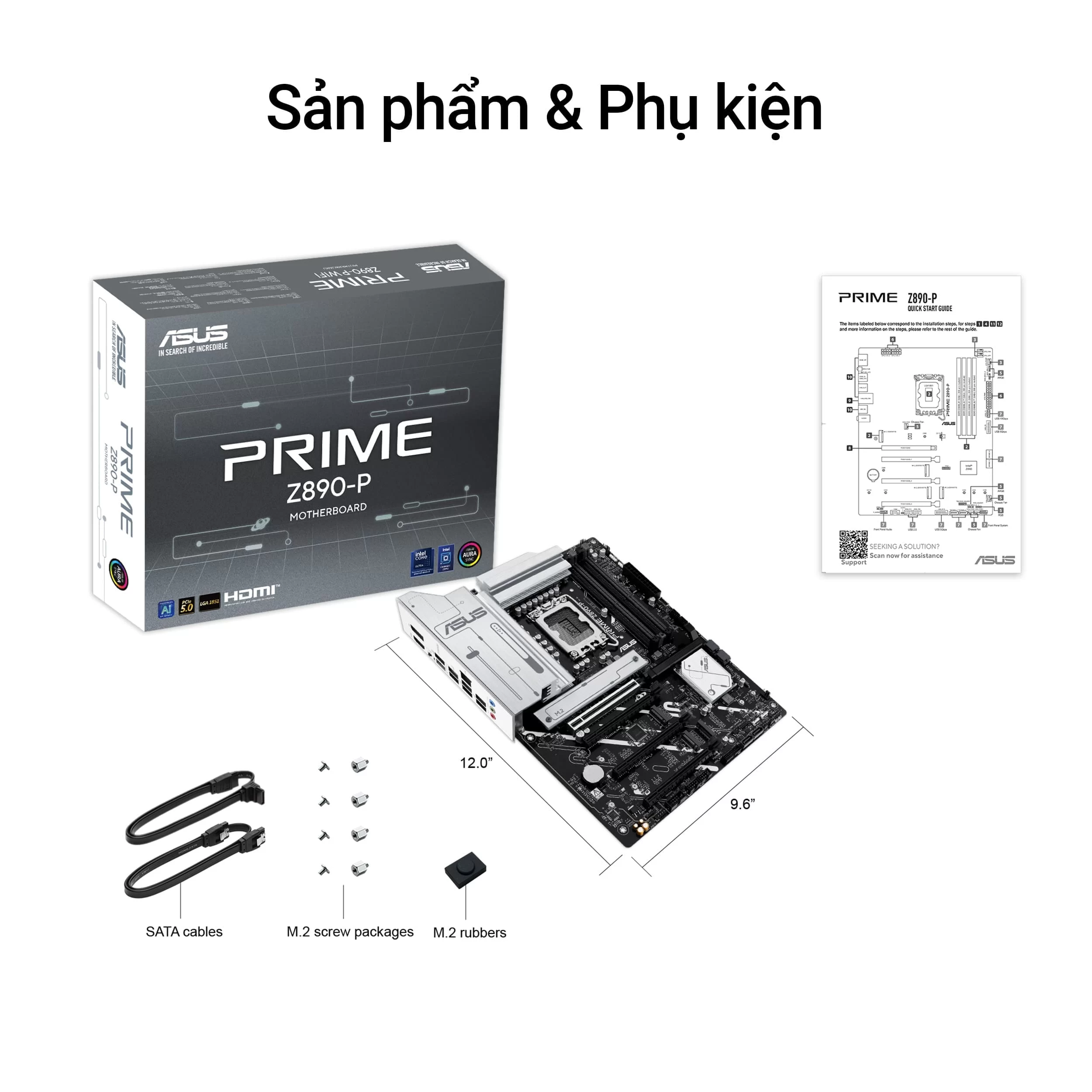

Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x M.2 rubber package
2 x Screw packages for M.2 SSD
Documentation
1 x Quick start guide

Operating System

Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)

Form Factor

ATX Form Factor
12 inch x 9.6inch ( 30.5 cm x 24.4 cm )
